Your car won’t start. The battery light is glowing. The headlights look dim. You start wondering: Is it the battery… or the alternator? Before you panic, there’s good news. If you have a BlueDriver OBD2 scanner, you can test your alternator right in your driveway. No mechanic required. Let’s break it down in a simple, fun, and stress-free way.
TLDR: You can test your alternator with BlueDriver by checking live voltage data and scanning for charging system trouble codes. A healthy alternator usually shows 13.5–14.7 volts while the engine runs. Look for codes like P0562 or battery warning lights. Combine live data, error codes, and a few physical checks for an accurate diagnosis.
What Does the Alternator Actually Do?
Your alternator is like a tiny power plant under the hood. Once the engine starts, it:
- Charges your battery
- Powers the headlights
- Runs your radio
- Keeps all electronics alive
If it fails, your car runs on battery alone. And that battery drains fast. Usually in under an hour.
That’s why testing the alternator early is smart.
Can BlueDriver Test an Alternator?
Short answer: Yes.
BlueDriver cannot physically touch the alternator. But it reads data from your car’s computer. That includes:
- Battery voltage
- Charging system voltage
- Error codes
- Warning light triggers
This information tells you almost everything you need to know.
Step 1: Plug in BlueDriver
First, locate the OBD2 port. It’s usually under the dashboard near the driver’s seat.
Now:
- Plug in your BlueDriver sensor
- Turn the ignition to ON (or start the engine)
- Open the BlueDriver app
- Connect via Bluetooth
You’re ready to test.
Step 2: Check for Trouble Codes
Start with a scan.
Tap “Read Codes.”
If your alternator is failing, you may see codes like:
- P0562 – System voltage low
- P0563 – System voltage high
- P2503 – Charging system voltage low
- P0620 – Generator control circuit malfunction
If you see one of these, the charging system needs attention.
No codes? That’s good. But don’t stop yet. Some alternators fail without throwing codes.
Step 3: Use Live Data to Check Voltage
This is where BlueDriver shines.
Go to Live Data. Search for:
- Battery Voltage
- Control Module Voltage
- System Voltage
Now look at the numbers.
Engine Off Voltage
With the engine off, a healthy battery should show:
12.4–12.7 volts
Lower than 12.2 volts? The battery may be weak.
Engine Running Voltage
Start the engine. Watch the voltage.
A healthy alternator should produce:
13.5–14.7 volts
This means it’s charging properly.
If the reading stays around 12 volts while running, the alternator is likely failing.
If the voltage jumps above 15 volts, the voltage regulator may be bad.
Step 4: Add Electrical Load
Want to stress test the alternator? Easy.
Turn on:
- Headlights
- AC fan on high
- Rear defroster
- Radio
Now watch the live voltage again.
A good alternator will stay above 13 volts.
If it drops into the low 12s or high 11s, the alternator is struggling.
This test mimics real driving conditions.
Common Signs Your Alternator Is Bad
Numbers are helpful. But symptoms matter too.
Here are warning signs:
- Battery warning light on dash
- Dim or flickering headlights
- Slow power windows
- Weak or dead battery repeatedly
- Strange whining noise from engine
If you notice two or more of these, test immediately.
Alternator vs Battery: How to Tell the Difference
This confuses many people.
Here’s a simple trick:
- If the car won’t start but runs fine after a jump and stays running → battery may be bad.
- If the car starts with a jump but dies shortly after → alternator likely bad.
You can confirm with BlueDriver voltage readings.
Remember:
Battery starts the car. Alternator keeps it running.
Physical Checks (Quick but Important)
Before replacing anything, inspect a few simple things.

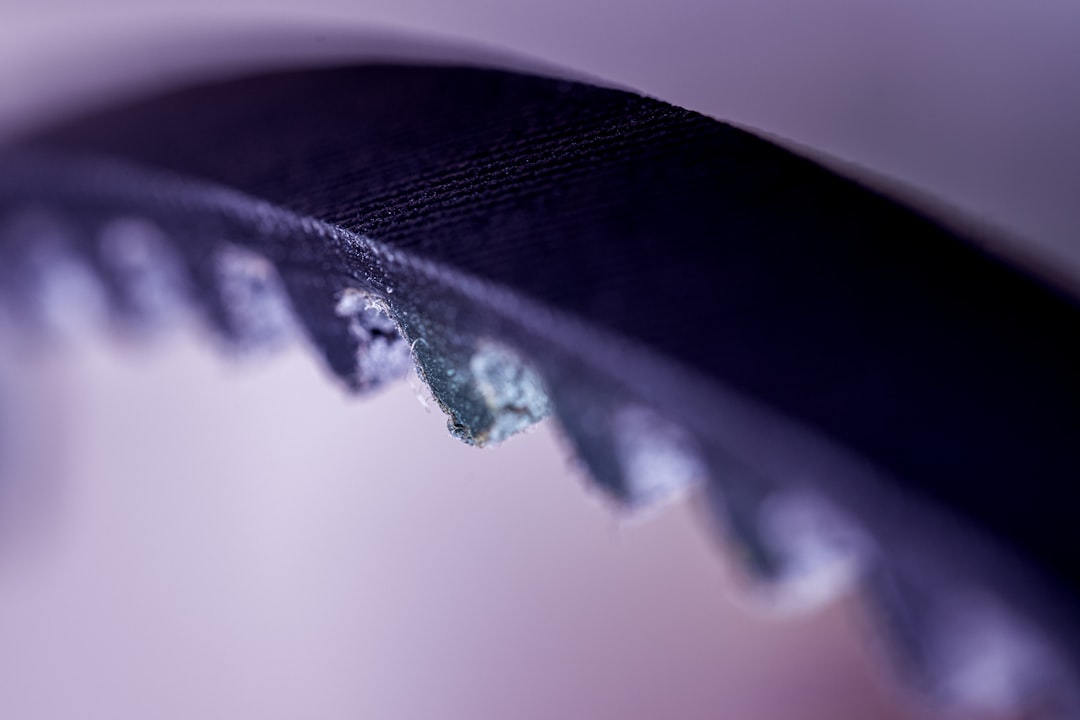

- Check the serpentine belt. Is it loose or cracked?
- Look for corrosion on battery terminals.
- Listen for grinding or whining noises.
- Check for burning smells.
Sometimes the alternator is fine, but the belt is slipping.
How Accurate Is BlueDriver for Alternator Testing?
Very accurate for voltage-based diagnosis.
It reads data directly from your vehicle’s computer. That’s the same system mechanics use for initial testing.
However, it cannot:
- Measure internal alternator diode ripple directly
- Physically load test the alternator
For most DIY drivers, live voltage data and trouble codes are more than enough.
Pro Diagnosis Tips
Want to be extra sure? Follow these expert tips:
- Test when cold and warm. Some alternators fail only at operating temperature.
- Clear codes and recheck. See if they return.
- Drive while monitoring live data. Watch for voltage drops.
- Check historical freeze frame data. It shows voltage when the code triggered.
Consistency is key. One weird reading doesn’t always mean failure.
What If Voltage Is Too High?
Most people worry about low voltage. But high voltage is dangerous too.
If you see readings above 15 volts consistently:
- The voltage regulator may be faulty
- The battery can overheat
- Electronics can be damaged
This situation needs quick repair.
When to Replace the Alternator
It’s probably time for replacement if:
- Voltage stays below 13V while running
- Charging system codes keep returning
- Battery repeatedly dies
- You hear internal bearing noise
Most alternators last 80,000–150,000 miles.
If yours is in that range, failure isn’t surprising.
Can You Drive with a Bad Alternator?
Technically, yes. But not for long.
Once the battery drains, the engine shuts off.
No power steering. No fuel injection. No fun.
If voltage reads under 12.6V while running, avoid long trips.
Final Thoughts
Testing your alternator with BlueDriver is simple. And kind of empowering.
You plug it in. You read the data. You understand what’s happening under the hood.
No guessing. No unnecessary parts replacing.
Just remember these key numbers:
- 12.4–12.7V engine off
- 13.5–14.7V engine running
- Above 13V under load
If your readings fall outside these ranges, it’s time to act.
With BlueDriver in your toolbox, you’re not just a driver anymore.
You’re the diagnostician.
And that feels pretty great.
